Warehouse Catwalk Racking Systems

Home / Products / Racking Products / Catwalk Rack

Warehouse catwalk systems are engineered, multi-level systems that offer high density storage and allow for many personnel to be involved in the picking process at all levels.

REB Storage Systems International is a material handling systems integrator that provides full project management of warehouse catlwalk racking systems. Our services include design, permitting support, subcontractor management, procurement of materials, and installation.

Read below to learn more about REB’s warehouse catlwalk racking systems.

REB’s Turnkey Services for Warehouse Catwalk Racking Systems

REB provides full project management of your warehouse catwalk racking system. A REB project manager will be your point of contact throughout the project. Our project managers prioritize communication and will make sure that all applicable parties have a firm understanding of timelines and progression of the project.

Read below to better understand our warehouse catwalk racking system project management services.

Design Services

Your REB account executive will speak with you to make sure we thoroughly understand the scope of your project. If necessary, we’ll conduct an onsite assessment. We want to make sure we understand your goals and current pain points so that we provide you with a solution that is optimized to your operation.

Submit Your Inquiry

  • This field is for validation purposes and should be left unchanged.

During the design process, we’ll obtain information such as your SKU profiles, space restrictions, and picking processes. We’ll use this information to design an efficient and safe catwalk system that includes the proper lighting, fire safety, and fall protection components.

Once all information is obtained, REB engineers will create a CADD drawing of your warehouse catwalk racking system that suits all space and picking process requirements.

Learn more about our design services.

Permitting Support

REB Storage Systems has more than 60 years of professional experience installing warehouse catwalk racking systems in warehouses nationwide. We’ll ensure that your operation’s pallet flow racking system is safely installed and compliant with MHI & OSHA standards while it optimizes your storage space and improves efficiency.

Learn more about our installation services.

Subcontractor Management

Once your warehouse catwalk racking system design is finalized, your REB project manager will secure all suppliers and subcontractors. We’ll manage their involvement through the project. This includes freight and installation.

Our project managers prioritize communication and will make sure that all applicable parties have a firm understanding of timelines and progression of the project.

Learn more about our project management services.

System Installation

Once your warehouse catwalk racking system design is finalized, your REB project manager will secure all suppliers and subcontractors. We’ll manage their involvement through the project. This includes freight and installation.

Our project managers prioritize communication and will make sure that all applicable parties have a firm understanding of timelines and progression of the project.

Learn more about our project management services.

How a Warehouse Catwalk System Works

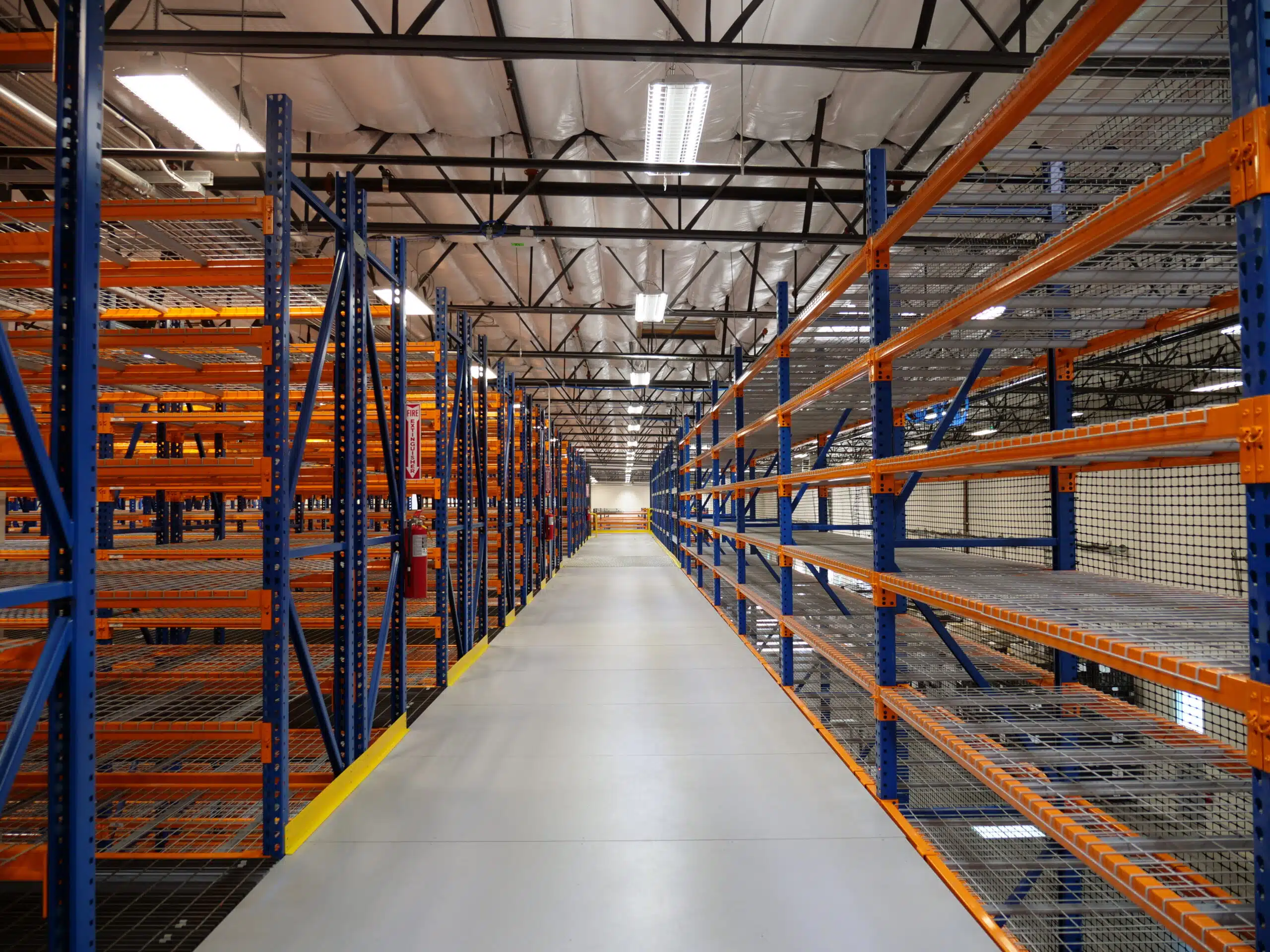

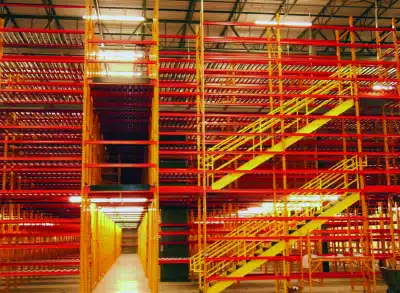

Warehouse catwalk systems integrate pallet rack with decking, bar grating, stairs, and other components to help expedite the picking process.

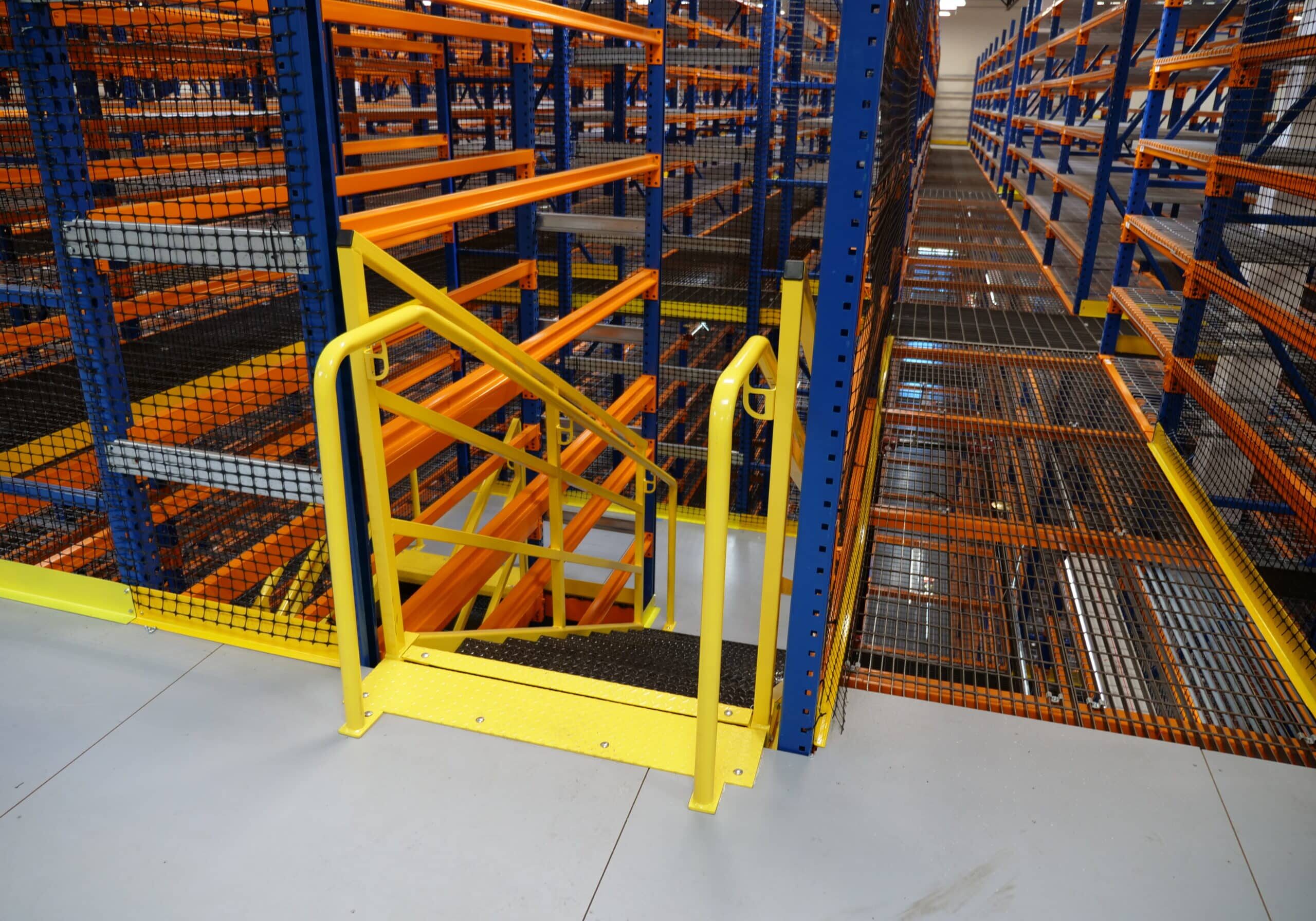

Employees access the upper levels of the system via stairs. Cartons are stored on the upper levels typically on either selective rack or carton flow rack and are picked by hand.

There are a few material handling component options available for getting cartons to the ground level for distribution.

Catwalk Racking System with a VRC

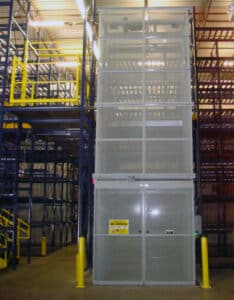

Vertical reciprocating conveyor (VRC): VRCs are ‘elevator-like’ systems designed specifically to bring pallets or cartons of material to and from the upper levels of the catwalk system.

Catwalk Racking Pallet Drop

Pallet drops: pallet drops are platforms located on each level of the catwalk system. Pallets are placed on this platform by a lift truck so that employees can load products on that level of the system from the pallet. The picking process works the same: products are loaded onto a pallet from the upper levels of the system and then retrieved by a forklift for distribution. The pallet drop typically has a safety gate to ensure employees can’t fall from the pallet drop area.

Conveyor on a catwalk system

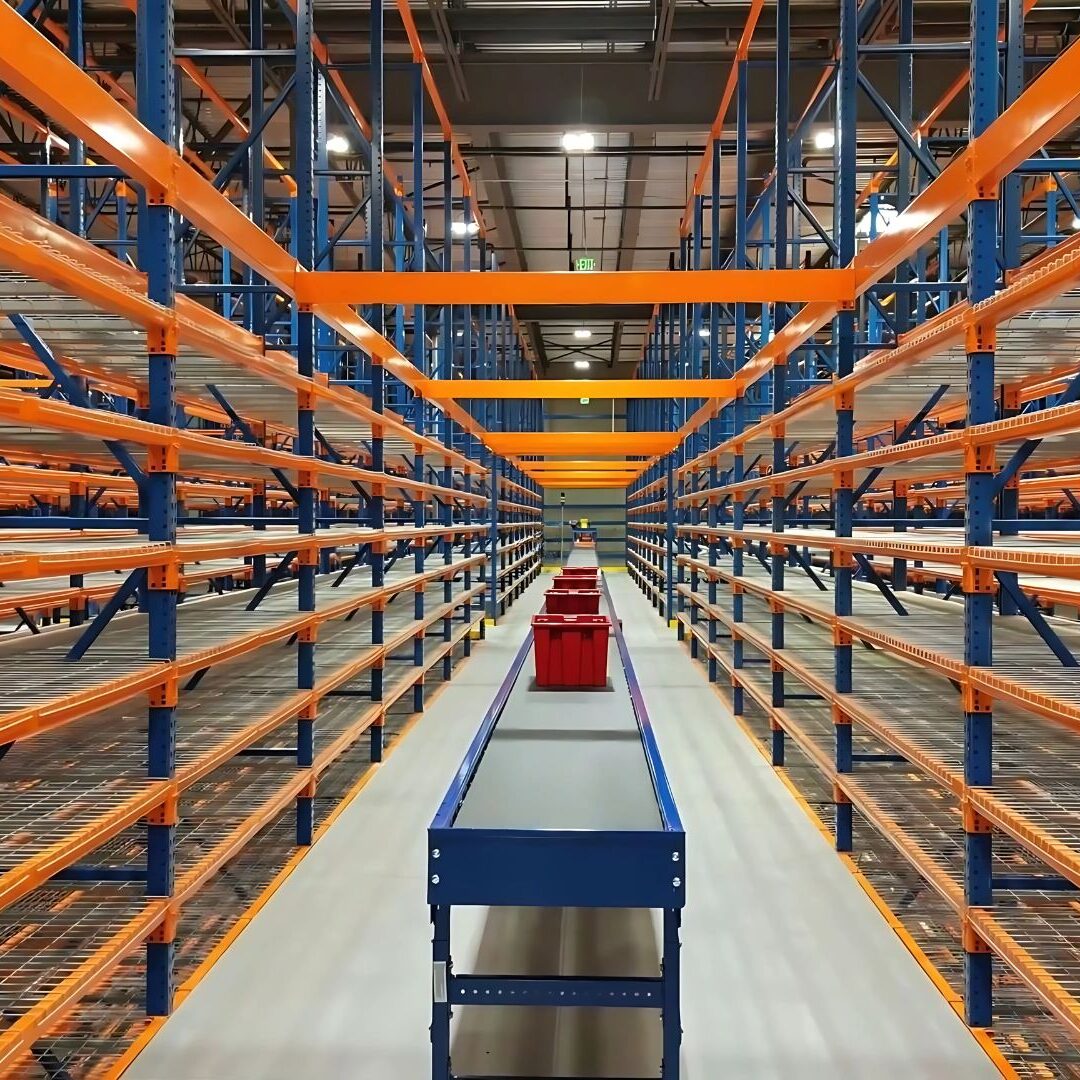

Conveyor system: a conveyor system can be integrated into the catwalk system to transport products to and from the upper levels of the system. Pictured is a conveyor system that is integrated into the second level of a catwalk system. This conveyor system uses a tote lift to transfer goods to the lower level of the system.

Key Features of a Warehouse Catwalk System

Typical Plan and Elevation

Typical specifications of a catwalk system are shown below. Keep in mind that systems can also be designed so that it's initially one level but can be expanded vertically in the future.

  • Minimum service aisle widths can vary by local building authorities, typically 30” or 36”.
  • Egress aisles are 44”.
  • Pallet aisles vary based on customer needs, typically between 60” and 96”.
  • Number of catwalk levels varies, can be up to 5 or 6 levels.

Integrated Components

Products can be integrated into a catwalk system for transportation and safety of employees and products. These can include:

  • Handrail
  • Safety Netting
  • Pallet Drop Areas
  • FlueKeepers
  • Vertical Reciprocating Conveyor
  • Stairs
  • Chutes
  • Kickplates

Additionally, it should be considered that catwalk systems will require lighting and in-rack sprinklers.

Advantages of a Warehouse Catwalk System

A warehouse catwalk system offers many important advantages to a distribution center’s operation, including:

  • High selectivity. Can be accessed by multiple employees at once. This can often eliminate ‘downtime’ during the picking process.
  • High density. Utilizes the full vertical storage space of your facility.
  • High throughput. A catwalk system can be integrated with conveyors
  • Reduces lift equipment costs. Lift equipment is often not needed, or not needed to the extent of an operation using a one-level rack system.

Is a Warehouse Catwalk System Right For Your Operation?

A warehouse catwalk system is typically a good solution for operation that:

  • Have unused vertical warehouse space.
  • Stores cartons.
  • Have bottlenecks in the picking process where pickers are waiting on other pickers to pick from certain locations.

Your Next Step for a Warehouse Catwalk System

Whether your next step is to gather more information or request a quote, consider REB Storage Systems. REB is a highly experienced systems integrator, in business since 1962. REB has 17 in-house project managers and engineers, all highly experienced in the material handling industry. These people know this industry inside and out.

REB is highly knowledgeable and experienced in designing, engineering, and installing warehouse catwalk systems and will make sure your system is the best fit for your space. We work with you to provide a turnkey system. From engineering, design, products procurement, subcontractor management, install, and permitting support, REB handles it all for you.

We’d appreciate the opportunity to help you further, whether that be more information or a quote. Fill in the contact form on this page or call us at (800) 252-5955 to get in touch with a REB representative.

Submit Your Inquiry

  • This field is for validation purposes and should be left unchanged.

DO YOU NEED CATWALK RACK?

If you need a complete catwalk rack system, we can help.
We've been creating high density catwalk storage systems for more than 50 years.
Whether your project is large or small, we have the expertise to ensure your next project is a success.
