SnapShelf

Ensured Compliant With NFPA Standards.

Home / Products / Decking Products / SnapShelf

Footer - SnapShelf

Ensuring compliance with NFPA standards in your warehouse is not only important for avoiding potential fines; compliance also helps to protect your stored items and your employees in the unfortunate event of a fire. SnapShelf decking is a unique option for facilities where NFPA compliance is mandatory and an open decking design is preferable.

SnapShelf Product Image

Request A Quote

  • This field is for validation purposes and should be left unchanged.

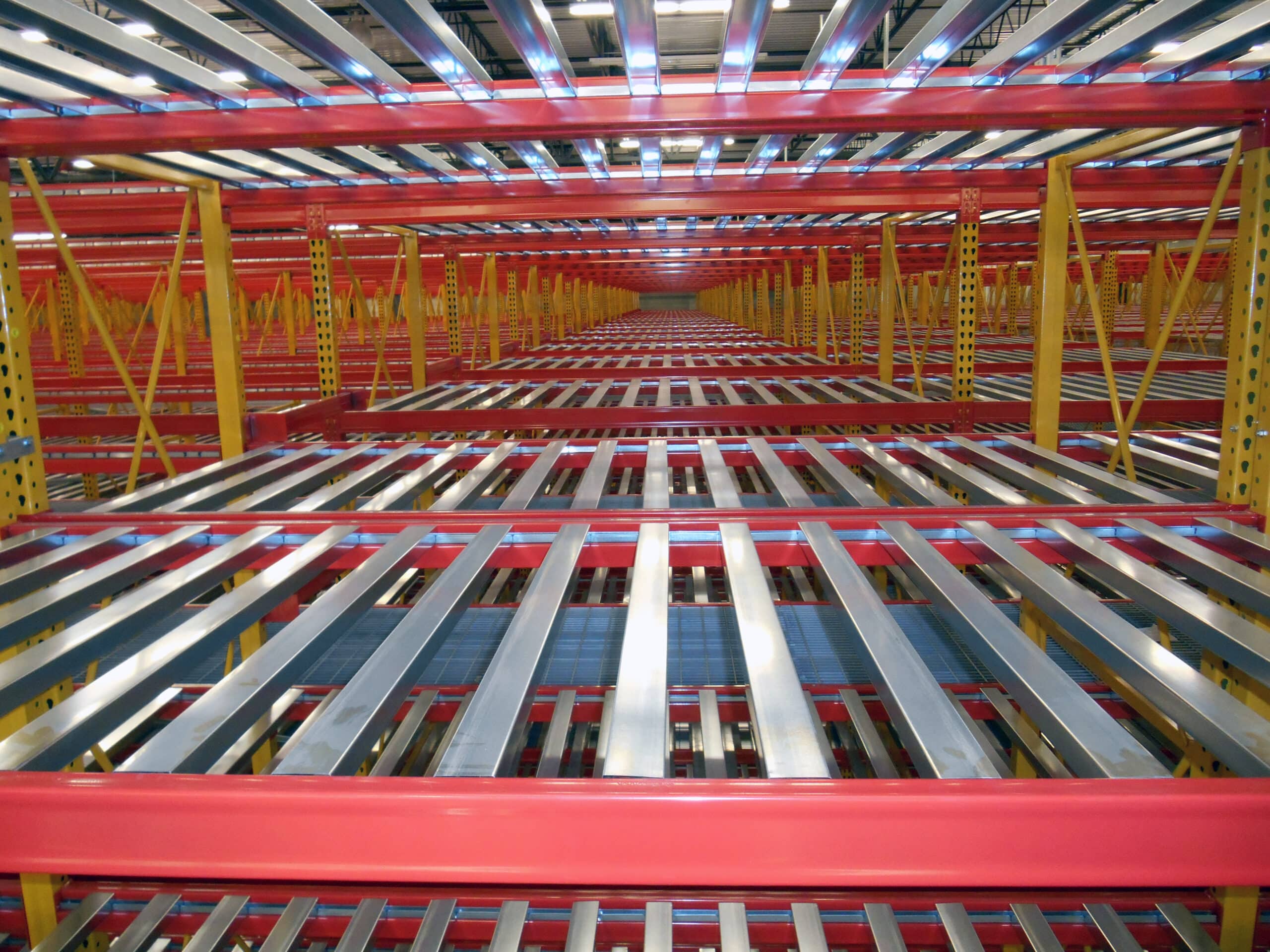

Code Compliant

Open area is calculated based on NFPA-13: “The area of a solid shelf is defined by perimeter aisle or flue space on all four sides. Shelves, or wire mesh, slates, or other materials more than 50 percents open and where the flue spaces are maintained shall be defined as open racks.”

Once installed, SnapShelf is always more than 50 percent open. We do not exclude the perimeter of our shelf from the calculations and we always include the support beams (as required by NFPA).

Code Compliant

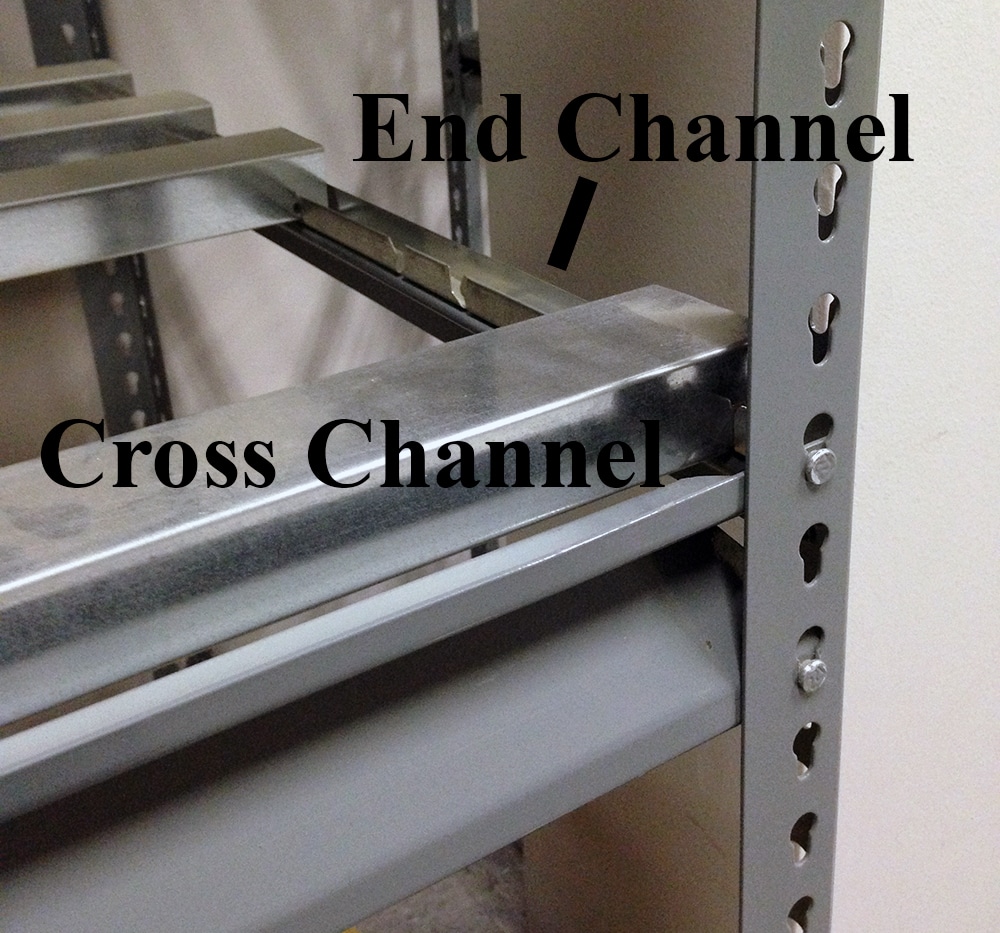

Unmatched Strength

Made from galvanized steel, SnapShelf decking offers superior strength and will not bend under the weight of your stored items when used in accordance with the product’s specifications. The unique design of SnapShelf decking features cross channels and end channels. The cross channels are attached to the end channels by a snap together mechanism. Once fastened, the design prevents the cross channel from moving in any direction. This provides a stable surface that allows products to be easily placed on and retrieved from the storage system.

Unmatched Strength

Specifications

SnapShelfAvailable Sizes:

  • Shelf widths from 26″
  • Shelf depths from 30″ to 144″

Materials:

  • Constructed of high strength galvanized steel.
  • Each level requires 2 end channels customer cut to the width of the rack, and 2 cross channels for each 13″ of rack width.

Cross Channels:

  • 2.5″ wide storage surface per channel.
  • Available to fit 1-5/8″ or 1-1/2″ step beams with flush fit.
  • 4″ open space between channels.

End Channels:

  • .75″ x .75″ x .75″
  • Nests perfectly in rack step beams.

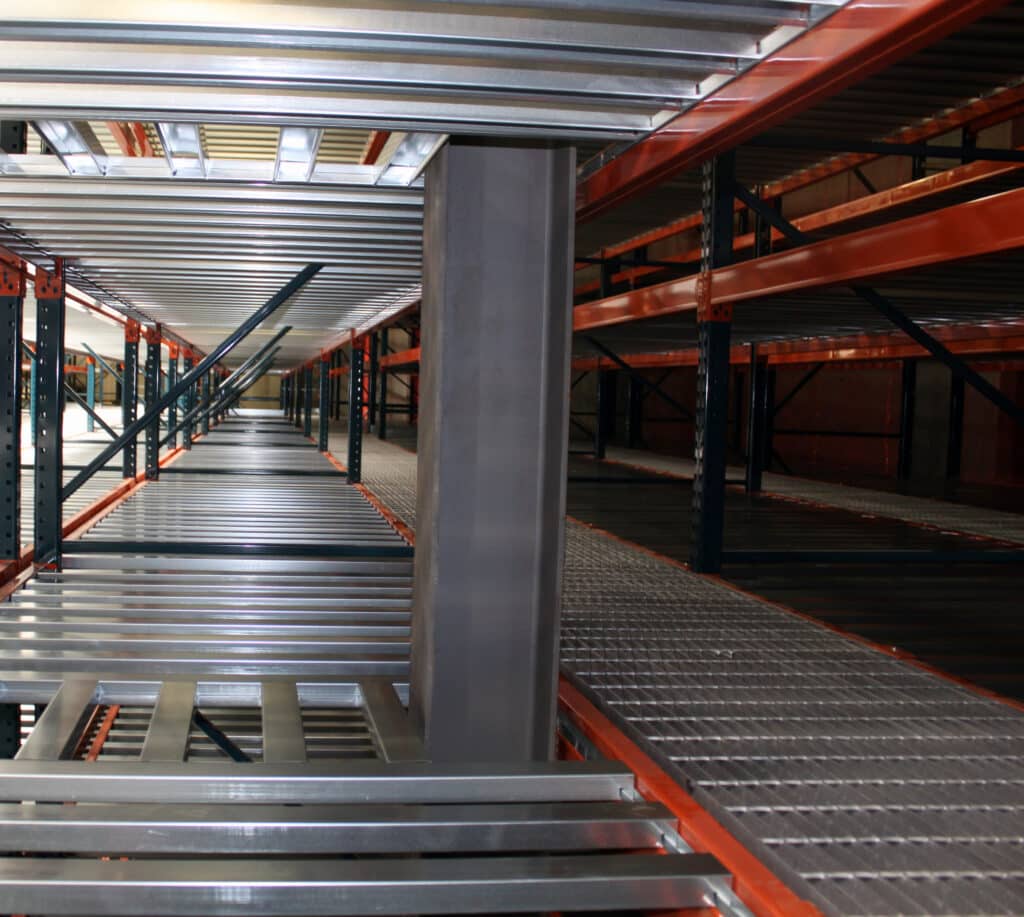

Specifications 1

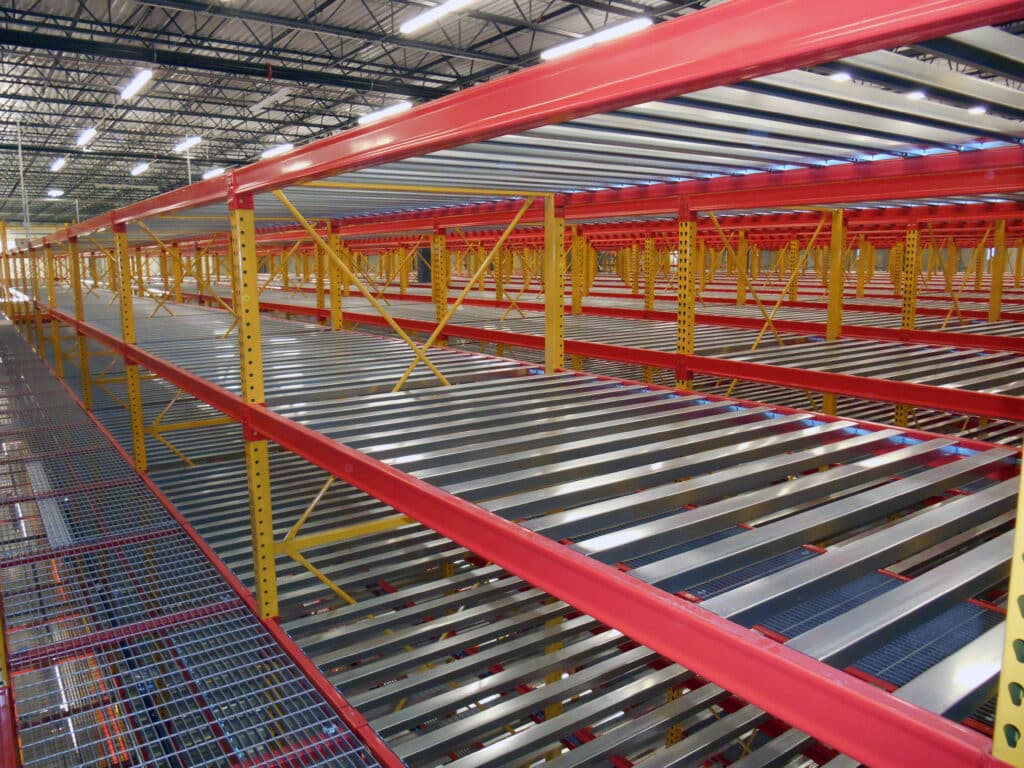

Specifications 2

Complete Rack System Products and Services

REB Storage Systems International can provide you with products to complete your material handling system, including decking, shelving, and mezzanines.

At REB Storage Systems International, we combine our superior selection of quality products with professional, first-rate service. We will gladly assist you with selecting the right options for your particular needs and can provide additional support to help you complete your project. From rack system engineering to rack installation, we can help with all of the needs of your material handling operations.

Complete Rack System Products and Services

DO YOU NEED SNAPSHELF DECKING?

If you need a complete SnapShelf Decking system, we can help.
We've been working with SnapShelf decking systems for more than 50 years.
Whether your project is large or small, we have the expertise to ensure your next project is a success.
