Pallet Racking Installation: Your Essential Guide to Setup & Safety

Introduction to Pallet Racking Installation

Pallet racking systems are a staple in efficient storage management, playing a crucial role in warehouses and distribution centers. They are designed to maximize storage space and improve inventory accessibility. However, the success of these systems hinges on their proper pallet-racking installation. A well-installed pallet rack system not only ensures optimal space utilization but also maintains workplace safety and operational efficiency.

Why is Proper Pallet Racking Installation Crucial

Correct pallet racking installation is vital for multiple reasons. Firstly, it ensures the structural integrity of the racks, preventing potential collapses that could lead to injury or loss of inventory. Secondly, it optimizes storage space, allowing for efficient organization and accessibility of goods. Lastly, it ensures compliance with safety standards, which is crucial for passing inspections and avoiding fines.

Understanding Different Types of Pallet Racks

In general, proper installation of rack systems includes site preparation, designing and procuring a system that allows for proper load capacity and space restrictions, and ensuring the system meets all regulatory requirements. However, each type of pallet rack system has unique considerations for proper installation. Read below for tips on each type of rack system.

Selective Pallet Rack

Uses: Selective pallet rack is the most common type of pallet rack. It is ideal for warehouses storing a variety of palletized items. It provides direct access to every pallet, making it perfect for facilities with a high turnover rate or those that need quick access to every SKU.

Installation Tips: When installing selective rack, consider the aisle width and system height requirements for the material handling equipment you use for picking. The system should accommodate the type of forklift truck used. For narrow aisles, installing down-aisle guides can be helpful in avoiding forklift impact.

Drive-In and Drive-Through Pallet Rack

Uses: Drive-in and drive-through rack is designed for high-density storage. Drive-in rack is accessible from one side, making it a last-in-first-out (LIFO) system, while drive-through rack is accessible from both sides, making it a first-in-first-out (FIFO) system. They are ideal for storing large quantities of similar products that require large, one-time moves.

Installation Tips: Because forklifts drive into these rack systems, ensuring stability and safety is paramount. For example, install cant-back style uprights in high traffic areas to help avoid forklift impact. Pay close attention to the depth of storage lanes and ensure that the racks can support the weight of stored goods, especially in tall configurations.

Push-Back Pallet Rack

Uses: Push back rack is designed for storing multiple pallets of the same SKU in a single row. It is ideal for spaces where high density storage is required without sacrificing selectivity. Each pallet is stored on a cart placed on a slightly inclined rail and pushed back by subsequent pallets, allowing for easy access and retrieval. Push back rack required one lane for loading and unloading, making it a LIFO storage system.

Installation Tips: It’s essential that the rails are perfectly aligned and level and the push-back mechanism is functioning smoothly. The weight of the pallets should be within the rack’s capacity to avoid overloading and potential rack failure. Additionally, install pallet stops on each level to keep the pallets in place and prevent them from sliding off when loaded.

Pallet Flow Rack

Uses: Pallet flow rack is designed for FIFO inventory management. They are ideal for storing perishable goods or items with expiration dates. Pallet flow rack requires two aisles, one for loading and one for unloading. Pallets are loaded at the higher end and glide down to the other side for retrieval. Once the front pallet is removed, the next one glides into picking position.

Installation Tips: The rack must be installed at the correct incline to allow pallets to flow smoothly by gravity. The incline required for the specific products being stored should be verified prior to installation. Correct installation of rollers and brakes is critical for a smooth operation. For example, the spacing of the rollers should be consistent to ensure even load distribution.

Planning for Pallet Rack Installation

Assessing Your Space

Before installation, a thorough assessment of the available space is crucial. This includes measuring the floor area, ceiling height, and noting any existing obstructions like pillars or overhead beams. Understanding the layout of your space will help in choosing the most suitable racking system. It’s also crucial to ensure the racking meets local seismic demands and floor slab specifications.

Determining Your Storage Needs

Consider the type, size, and weight of the items you’ll be storing. This will influence the choice of racking system, its dimensions, and weight capacity. Also, think about the accessibility requirements for your inventory, whether you need FIFO or LIFO storage solutions, and how often items will be accessed. This will help determine how many aisles you’ll need.

Selecting the Appropriate Pallet Rack

Based on the assessment of your space and storage needs, select the type of pallet rack that best suit your operation. Factors like floor capacity, ceiling height, and forklift accessibility should guide your decision. Also, consider future expansion plans to ensure the selected racking system can accommodate growth.

Pre-installation Steps for Pallet Racking

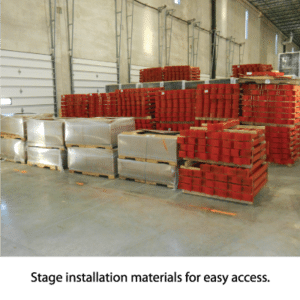

Site Preparation

Clear the installation area of debris and obstructions. Ensure that the floor where the racking will be installed is level and can withstand the weight. If necessary, reinforce the floor to prevent damage and ensure stability of the racks.

Safety Procedures

Follow the Occupational Safety and Health Administration (OSHA) guidelines and local safety regulations. All personnel involved in the installation should be trained in safety procedures and wear appropriate personal protective equipment (PPE), such as hard hats, safety glasses, and steel-toed boots. Always be sure to comply with all federal, state, and local regulations. Obtain necessary building permits and ensure the installation layout is approved by a licensed project engineer.

Step-by-Step Guide for Pallet Rack Installation

Laying Out Your Pallet Racking System

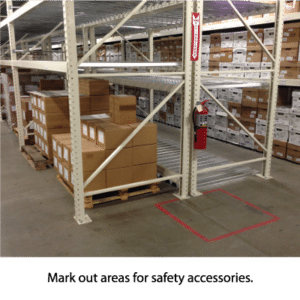

Using the layout plan, mark the positions of the racks on the floor. Ensure sufficient space for aisles, forklift operation, and emergency exits. Accurate layout marking is crucial for efficient material flow and safety.

Assembling the Upright Frames

The installation begins with assembling the upright frames. Ensure that all components, like bracings and footplates, are correctly fitted. The frames must be vertical and stable before proceeding.

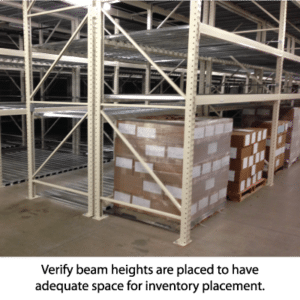

Installing the Beams

Carefully install the horizontal beams, ensuring they securely lock into the uprights. The beams should be level, and their spacing must accommodate the size of the pallets being stored. When installing beams, choose the correct gauge and size for load support, crucial for safety and durability. Carefully stage components and meticulously mark the floor for the starter bay to ensure precision in installation.

Completing the Installation

Once the frames and beams are in place, double-check all connections. Ensure that every part is tightly secured and the structure is stable. It’s essential to ensure that the racks are level and aligned correctly.

Important Factors to Remember During Installation

• Start by ensuring the first bay is correctly squared from all directions. Continually check that the installation remains plumb while installing subsequent bays. Only anchor the footplates after all bays are verified for correct installation. Avoid trying to adjust the plumb after anchoring, as this could damage the racks or cause injury.
• Once the entire row is constructed, install and tighten back connectors according to the correct torque specifications.
• Inspect each section to ensure all installation procedures have been accurately followed.

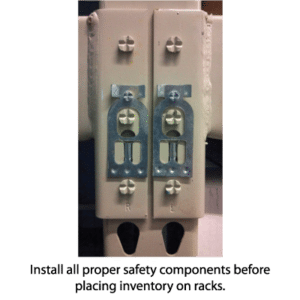

• Install shelf accessories, like crossbars and decking, after the racks are anchored. Ensure they are evenly spaced and secured according to manufacturer guidelines.
• Include a detailed check to ensure that the racking system meets the specific load requirements and safety standards of your region. This involves regular verification during the installation to maintain compliance with all safety and building codes. Throughout the installation process, research and adhere to all manufacturers’ requirements for the chosen rack and components.

Inspecting Your Pallet Rack Installation

Ensuring Proper Load Distribution

Regularly check that the weight on the racks is evenly distributed. Overloading one section can lead to structural failure and accidents.

Checking for Correct Alignment

Regularly inspect the racks to ensure they remain correctly aligned and level. Misalignment can lead to uneven weight distribution and increased risk of rack failure.

Maintaining Your Pallet Racks

Consistent maintenance is key for the longevity and safety of your pallet racks. Schedule regular inspections to identify any potential issues, such as loose bolts or damaged components, and address them promptly.

Pallet Racking Safety and Compliance

Understanding Pallet Rack Load Limits

Familiarize yourself with the load limits of your pallet racks. Exceeding these limits can cause structural failure. Ensure that all staff are aware of these limits to prevent overloading.

Adhering to Local Building and Fire Codes

Compliance with local building and fire codes is essential. This includes ensuring adequate aisle spacing, fire suppression systems, and load signage. Non-compliance can result in fines and jeopardize safety.

Looking for help with getting the right permits for your warehouse? Check out our Rack System Permitting Support Services

Regular Maintenance and Inspections

Implement a regular maintenance and warehouse inspection schedule. This should include checking for damage, ensuring bolts are tightened, and verifying that load limits are not exceeded. Regular inspections can prevent accidents and extend the lifespan of your racking system.

Hiring Professionals for Pallet Racking Installation

When to Consider Professional Installation

Consider hiring pallet racking installation professionals if you lack the necessary expertise, manpower, or equipment for safe installation. Professional installers will ensure that the installation is done correctly and complies with all safety standards.

Selecting a Reliable Installation Provider

Choose an experienced and reputable provider. Look for providers with positive reviews, a track record of safety, and adherence to industry standards. Ensure they are licensed and insured, and ask for references or case studies of their previous installations.

Effective pallet racking installation is a complex process that requires careful planning, adherence to safety standards, and regular maintenance. By following these detailed guidelines, you can ensure a safe, efficient, and compliant storage system in your facility.

Real-World Success Stories in Pallet Racking Installation

The importance of proper pallet racking installation is vividly illustrated two of our case studies. The first, “Selective, Drive-In, Push Back, Rivet Shelving, Conveyor System“, showcases a comprehensive solution for a new distribution center, emphasizing the need for expert installation in varied inventory management. The second case study, “Custom Clothing Crunch“, highlights how efficient installation of selective pallet racks and other storage solutions within a tight 30-day deadline significantly improved an online clothing company’s operations. These examples underscore the critical role of skilled installation in achieving storage efficiency and operational success.

Common FAQs about Pallet Racking Installation

• Q: Can I install my own pallet racking?

• Yes, you can install your own pallet racking, but it’s important to have the necessary expertise and equipment. Proper installation is crucial for safety and efficiency. If you’re inexperienced, consider hiring professionals to ensure correct installation and compliance with safety standards.

• Q: How much does it cost to rack a pallet?

• The cost of pallet racking varies widely depending on the type of racking system, materials used, size of the project, and geographic location. Costs can range from a few hundred to several thousand dollars per pallet position. It’s best to get a detailed quote from suppliers or installation professionals for accurate pricing.

• Q: How long does it take to install pallet racking?

• The installation time for pallet racking depends on the size and complexity of the project. A small system might be installed in a few days, while larger systems can take several weeks. Factors like the type of racking, preparation of the site, and the experience of the installation team also affect the timeline.

• Q: What are OSHA requirements for warehouse racking?

• OSHA requires that warehouse racking systems meet specific design and construction standards to ensure safety. These include proper load rating, stability, and protection against collapse. Regular inspections, maintenance, and adherence to load limits are also mandated. Racking must not obstruct fire safety equipment or exits and should be properly anchored and aligned.

• Q: How to design pallet racking?

• Designing pallet racking involves assessing your storage needs, space, and workflow. Determine the type, size, and weight of items to be stored, and choose a racking system that suits these requirements. Consider factors like aisle width, forklift access, loading capacity, and inventory management method (FIFO or LIFO). It’s also important to comply with local building codes and safety regulations. Using a professional designer or a reputable vendor can help ensure an efficient and safe design tailored to your specific needs.
